Run Transient and compare V(vin) with V(vout). The 0.5 V peak input produces an inverted 1 V peak output because −R2/R1 = −2. Change R2 to explore the gain while keeping the output inside the ±5 V supplies.
Open and run

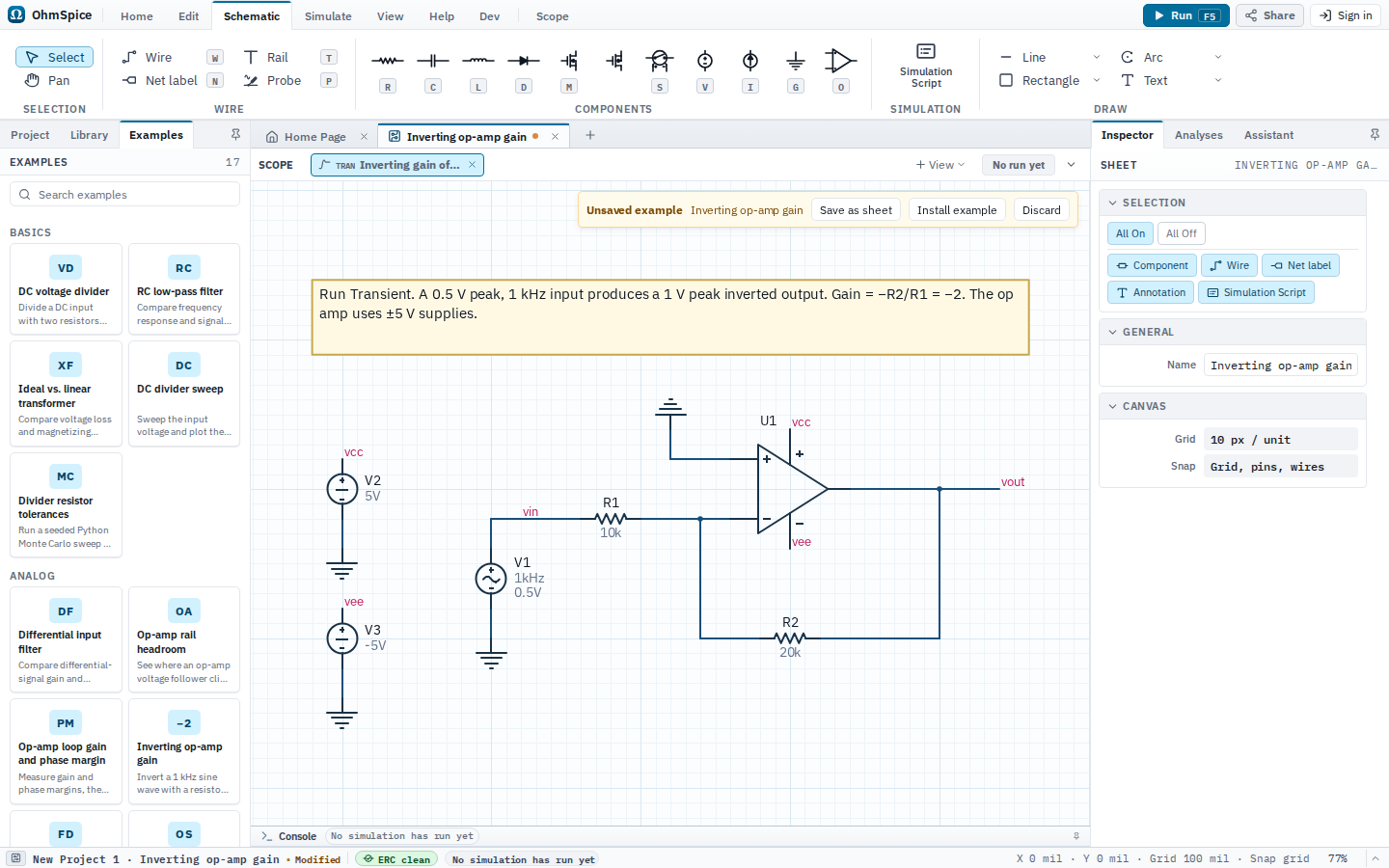

- Open Examples from the Home ribbon.
- Choose Inverting op-amp gain.
- Open Simulate and choose Setup to review the analyses.
- Choose Run for one analysis or Run All for the complete configured set.
- Select a matching Scope view after the run. Use Save as sheet to keep the example or Discard to close it.
Sheets, analyses, and Scope
Inverting op-amp gain
Setup: Inverting gain
| Analysis | Configuration |
|---|---|
| 1 kHz input and outputTransient |
|
Scope views and expected results
Inverting gain of two
Analysis: 1 kHz input and output
Waveforms
V(vin)V(vout)
Python scripts
No Python scripts are included with this example.
