DC voltage divider

Divide a DC input with two resistors and measure the midpoint voltage.

Basics

Start with the Bias Point result, then change one resistor and rerun to compare the midpoint voltage.

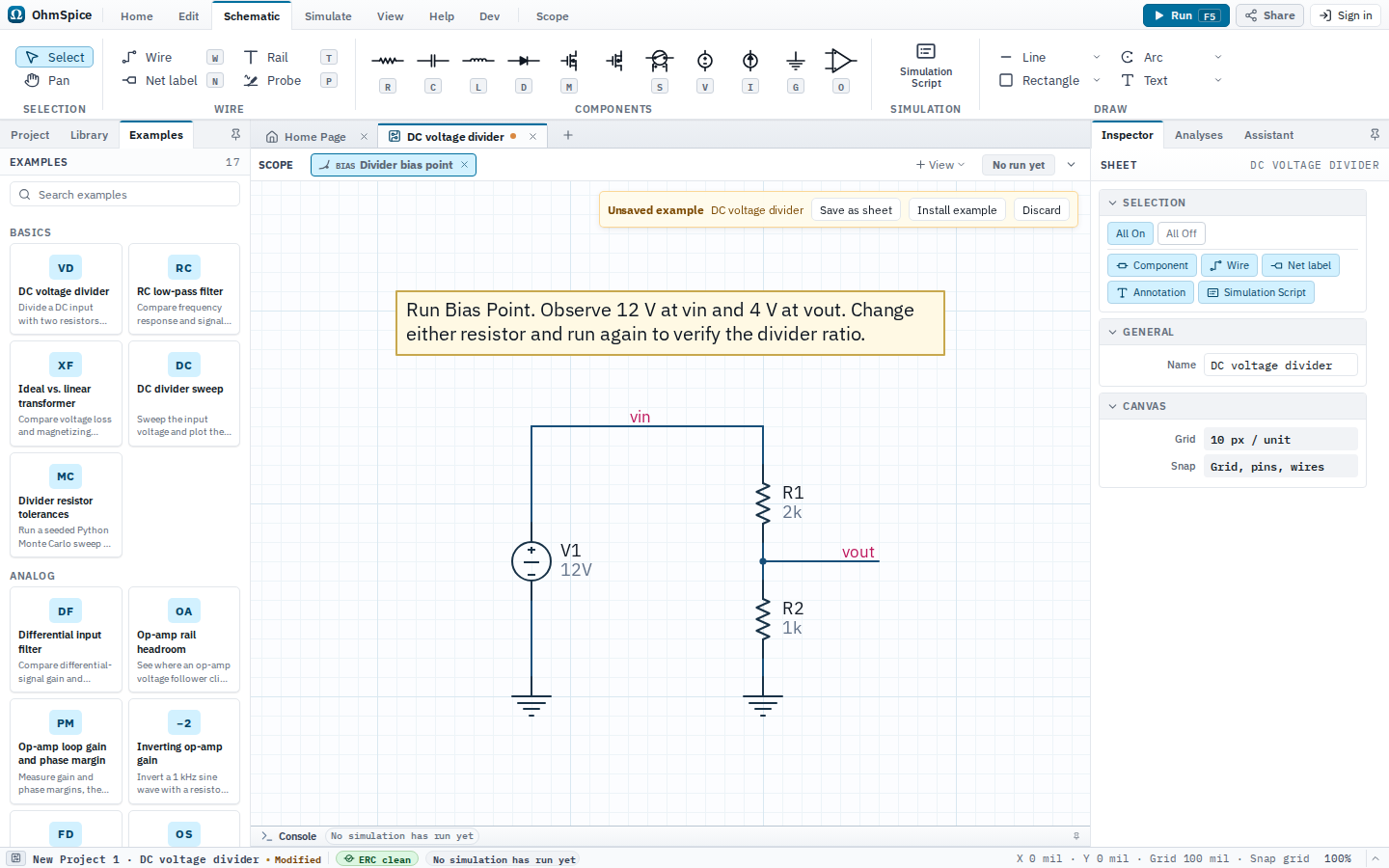

Editor showing the DC voltage divider SPICE example as an unsaved schematic. — DC voltage divider opens as an editable, unsaved schematic.

Open and run

Open Examples from the Home ribbon.
Choose DC voltage divider.
Open Simulate and choose Setup to review the analyses.
Choose Run for one analysis or Run All for the complete configured set.
Select a matching Scope view after the run. Use Save as sheet to keep the example or Discard to close it.

Sheets, analyses, and Scope

DC voltage divider

Setup: Bias Point

Analysis	Configuration
Bias Point	Default settings

Scope views and expected results

Divider bias point

Analysis: Bias Point

Bias Point

V(vin)
V(vout)

Readouts

Output voltageLastV(vout)

Python scripts

No Python scripts are included with this example.
